Evident Laser Auto Pvt Ltd

LASER CUTTING SERVIES

We have with us well established infrastructure support that allows us in efficiently as well as precision handles involved Laser Cutting Service demands

Some of the service areas we hold expertise in Laser Cutting include:

Mild Steel Laser Cutting Services
Stainless Steel Laser Cutting Services
Aluminum Laser Cutting Services
Brass Laser Cutting Services
Copper Laser Cutting Services

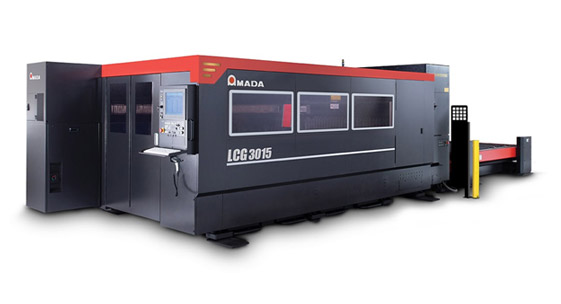

AMADA LCG 3015

The CNC laser cutting machine is used to cut metals such as Mild Steel, Stainless Steel and Aluminum with high precision and speed. Laser provides excellent cut quality and productivity. Laser technology has high capital equipment, running and maintenance cost. We have state of the art CNC laser machines of make AMADA LCG 3015. Our expert team works on Software CAD/CAM to execution of complex component in Laser Cutting.

Our machine delivers higher speed and faster acceleration processing by utilizing a carriage with a lower center of gravity and the latest motion system incorporating high torque motors and helical rack drives. Combined with a CO₂ Oscillator designed with a, cutting mode similar to a Fiber Laser, the LCG 3015 enhances processing speeds and productivity in the thin to medium thick material range

MODEL: LCG 3015
SPECIFICATIONS
Laser Power	3500W
Laser Source	CO2
Max. Axis Speed (simultaneous)	170M/MIN
*Working Range (XYZ)*	*3070 1550 * 100**

Max. Material Thickness
Mild Steel (MM)	18MM
Stainless Steel (MM)	8MM
Aluminium (MM)	5MM

AMADA ENSIS 4020 AJ (FIBER LASER)

Fiber lasers were claimed to be advantageous in cutting thin materials Faster and thick material high finish quality similar to co2 laser. The ENSIS has expanded the thickness range of materials to be cut while retaining the characteristic capability of fiber lasers to cut thin materials.

The conventional wisdom about fiber lasers in overturned by Amada’s original and latest beam control technology installed on the ENSIS.

MODEL: ENSIS 4020 AJ (FIBER LASER)
SPECIFICATIONS
Laser Power	3000W
Laser Source	FIBER
Max. Axis Speed (Simultaneous)	170M/Min
*Working Range (XYZ)*	4070 X 2050 X 100

Max. Material Thickness
Mild Steel (MM)	25MM
Stainless Steel (MM)	15MM
Aluminum (MM)	12MM
Brass	10MM
Copper	10MM

BENDING SERVICES

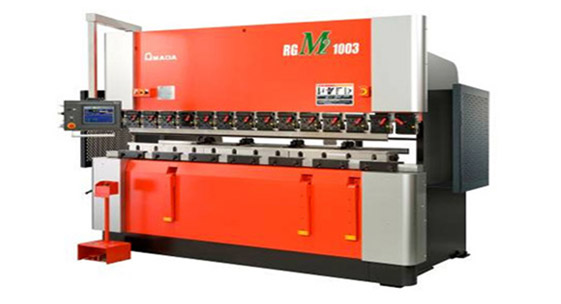

AMADA CNC BENDING MACHINE RG M2 1003

CNC bending machine is a highly automated bending process. It allows high dimensional accuracy and design flexibility.
The process provides excellent repeatability. Our team uses software ABE Bend with VPSS (virtual prototyping simulation system) helps to eliminate the guess work from each process.
We have capacity 100 Tons and Bending length Up to 3.2 meters. We can offer Bending up to 8 mm thickness for sheet steel.

MODEL: RG M2-1003
MACHINE SPECIFICATIONS
Tonnage	KN (Ton)	1000(100)
Max Bend Length	MM	3100
Stroke Length	MM	100
Approach Speed	MM/S	70
Bending Speed at	MM/S	13
Return Speed	MM/S	52
Bending Thickness	MM	8

IN HOUSE BENDING MACHINE TOOL FACILITY AVILABLE

MODEL: RG M2-1003
TOOLS SPECIFICATIONS
TOOL TYPE	HEIGHT	LENGHT
STRAIGHT PUNCH R1.0	90MM	3100(500MM SEGMENT)
STRAIGHT PUNCH R3.0	90MM	3100(500MM SEGMENT)
STRAIGHT PUNCH R5.0	90MM	3100 (500MM SEGMENT)
GHOOSE NECK PUNCH R1.0	90MM	3100 (500MM SEGMENT)
V-DIE 6V,8V,10V,12V,16V, 20V,22V,25V,35V,50V	STANDARD	3100 (500MM SEGMENT)
RADIUS PUNCH HOLDER R10, R12, R16 Etc	90MM	3100 (500MM SEGMENT)
HEMMING TOOL SET	STANDARD	1500 (500MM SEGMENT)
EXTENSION PUNCH HOLDER	120MM	5 SET(APP. 1.5MTR )

FABRICATION SERVICES

Wecarry out different types ofWELDINGdepending on the type of fabrication. We Develop different types of templates and fixtures depends on requirement of assemble parts to achieve ok part and stop complete rejection.
The availability of such varied equipment's ensures that we meet all your welding needs.

MIG Welding Machine
TIG Welding Machine
Drilling Machine

Welding is a process were part assemble will come to an end of the process and give a proper finish in all assemble joints to achieve such an external finishing we have a well experienced certified welders. And we have a team to evidence the quality

ALLIED SERVICES

We also have a regular OutsourceService (Vendors) for:

Powder coating
Plating
Rolling

For Precision Job we also have a Vendor for:

CNC Turning

CNC Milling

Grinding (Surface Grinding, Center Less Grinding, Tool and Cutter Grinding etc)

Heat Treatment

Blackening

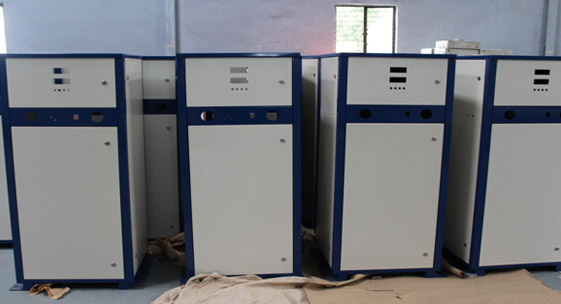

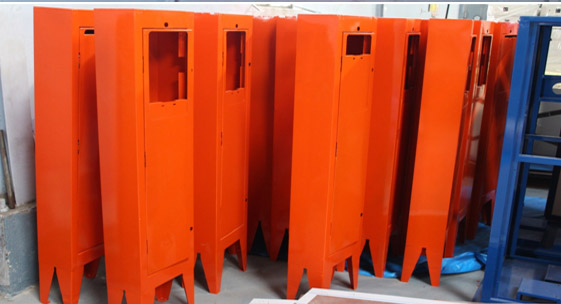

POWDER COATING

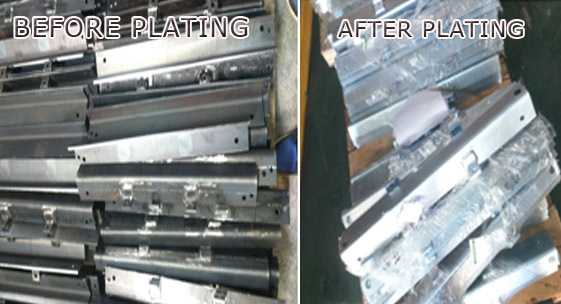

PLATING

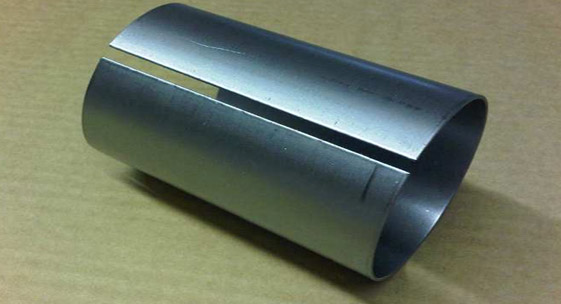

ROLLING

RESERCH & DEVELOPMENT SERVICES

Supporting the demands of offering quality laser cutting job works as per customer’s requirements including for small requirements, the presence of modern R & D unit also allows us to keep in touch with latest advancements happening in our field in terms of methods and technology, thus helping us in staying ahead in our area of operations. Evident Laser Auto Pvt Ltd always appreciates our new customer for their new products research and development. We also try to avoid welding areas during development of parts. And try to complete the assemble maximum in bending areas using special degree bending. All this success is achieved through our technical engineering team. By using latest software and also working physically with all parts produced in our in house.
